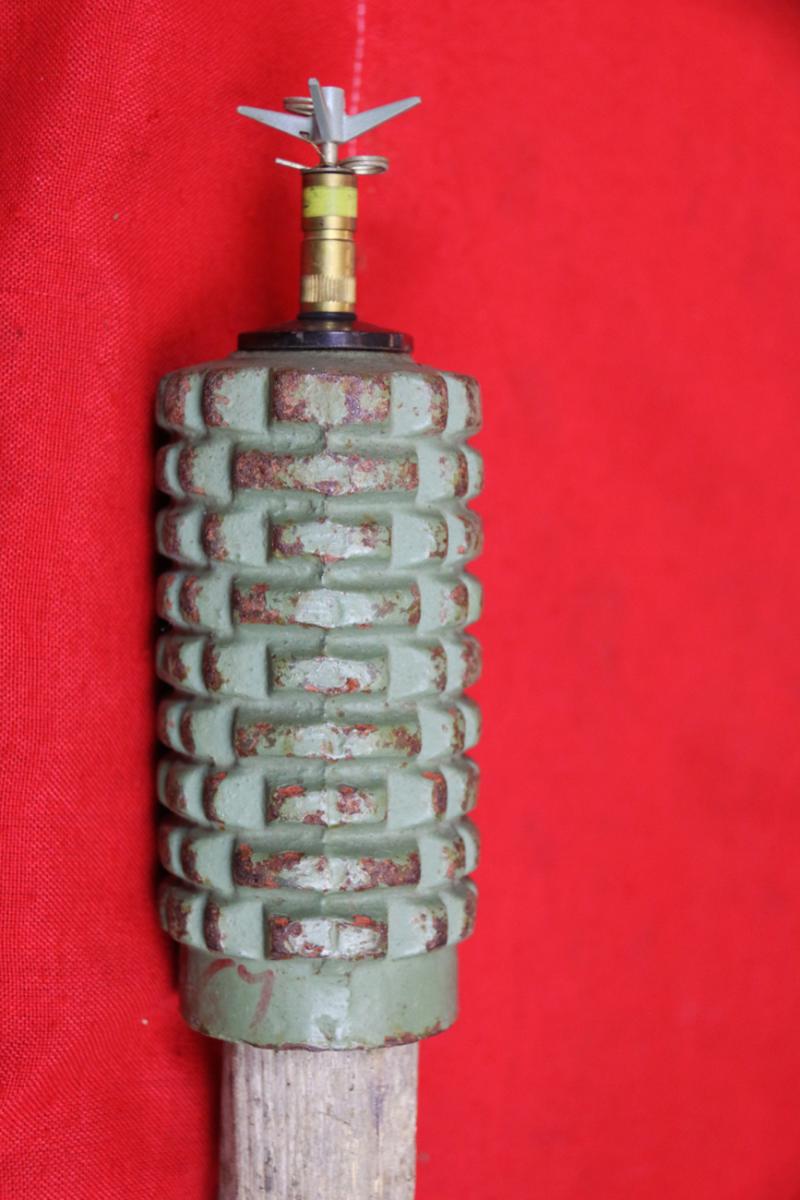

Deactivated Original Yugoslavian Stake Mine PMR-2A Anti-Personnel Mine. From the Bosnian War With Original UMNP-1V Fuse

Inert, empty and perfectly safe. Collectors item only.

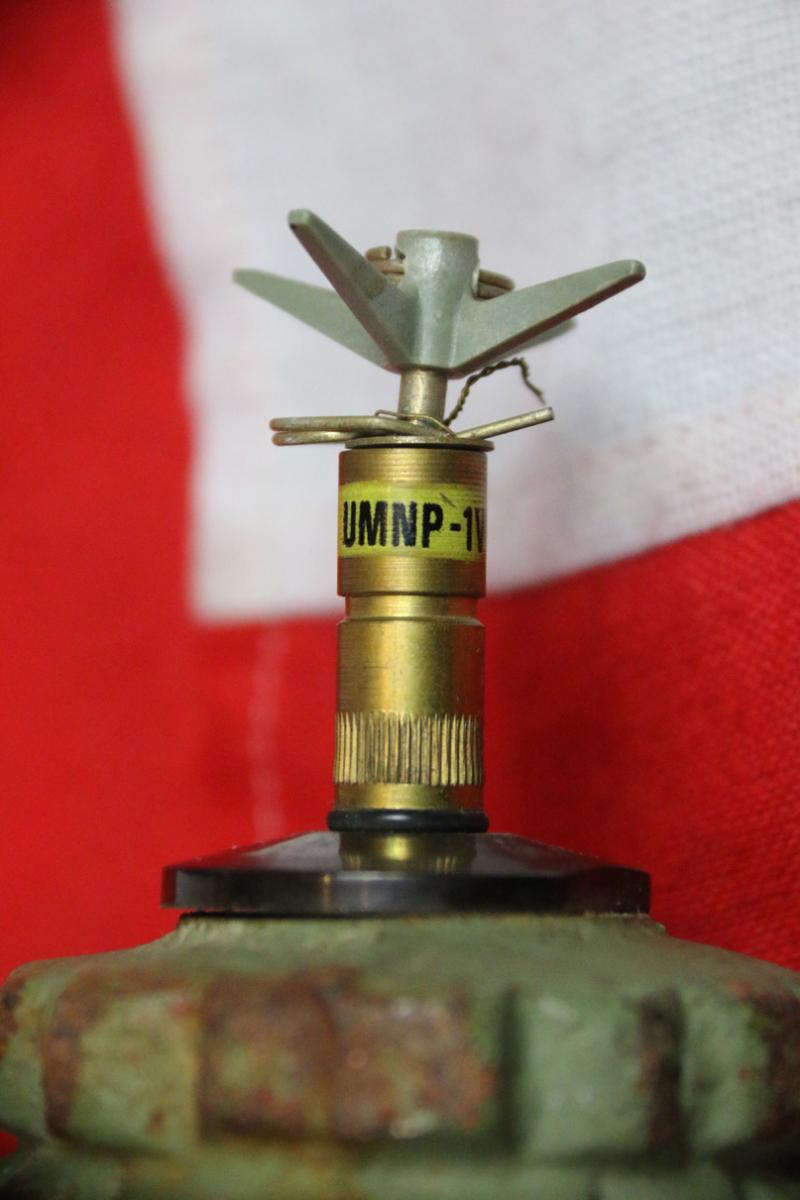

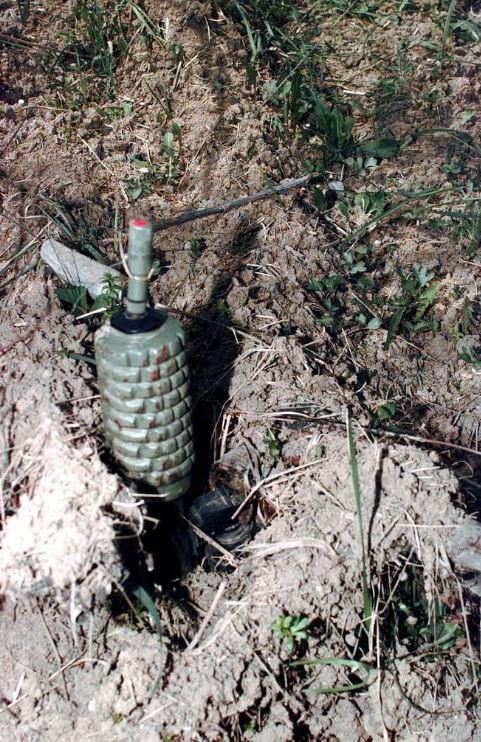

The PMR-2A is a Yugoslavian, stake-mounted anti-personnel fragmentation mine. It is similar in design to the Russian POMZ-2 and the earlier PMR-1 mines. The mine is designed to be triggered by a tripwire, and its fragmentation sleeve scatters lethal shrapnel upon detonation. It is typically mounted on a wooden stake and positioned with the top of the mine about 11.8 inches (30 cm) above the ground, often in areas with dense vegetation. his is the Yugoslavian UMNP-1(УMНП-1), a tilt, PULL and PRESSURE-fuze used on landmines, demolition-charges and Booby-Traps (BTPs).

Once armed, PRESSURE on the prongs, or PULL on a Tripwire (TPW), tilts the prong assembly.

The lockwire and safety-pin are removed from the tilt-rod, arming the Firing-Device (FD).

A PULL force of 2.5kg (5.51lbs) on a TPW attached to the pull-ring, or PRESSURE of 4.5kg (9.92lbs) on the prong assembly, causes the tilt-rod to force the plunger downward. The plunger drives the actuating rod downward and further compresses the Firing-Pin (FP) spring.The actuating-rod also pushes the lock-ball retainer downward until the lock-balls fall inward, freeing the FP. The FP spring drives the freed FP into the detonator, initiating the explosive-train.

Anti-personnel fragmentation mine (APF).

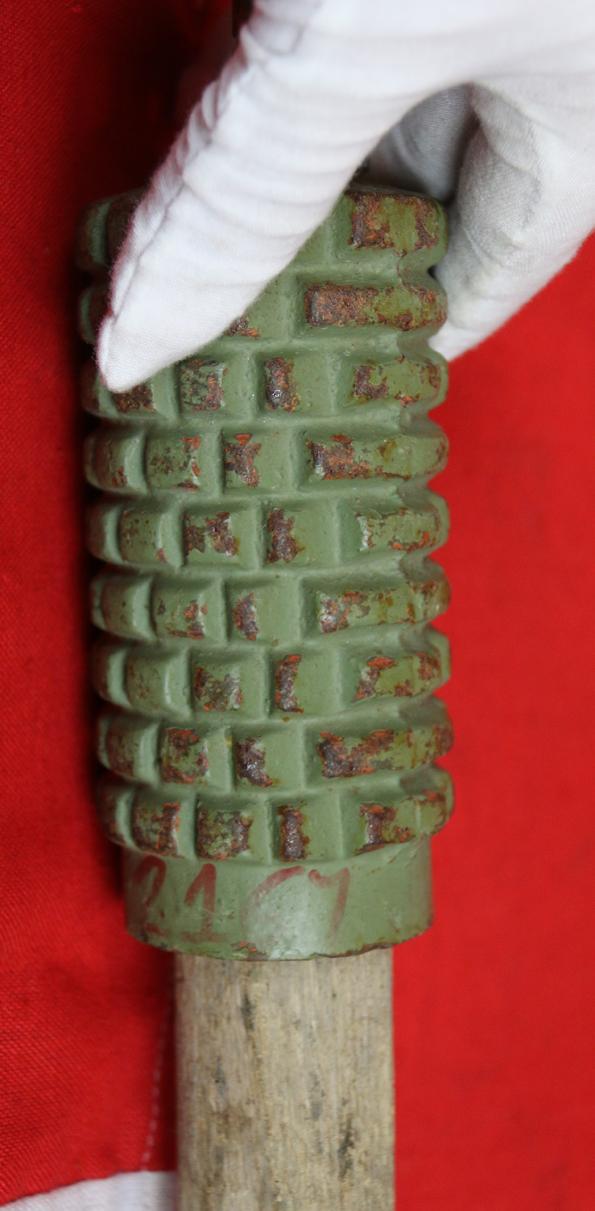

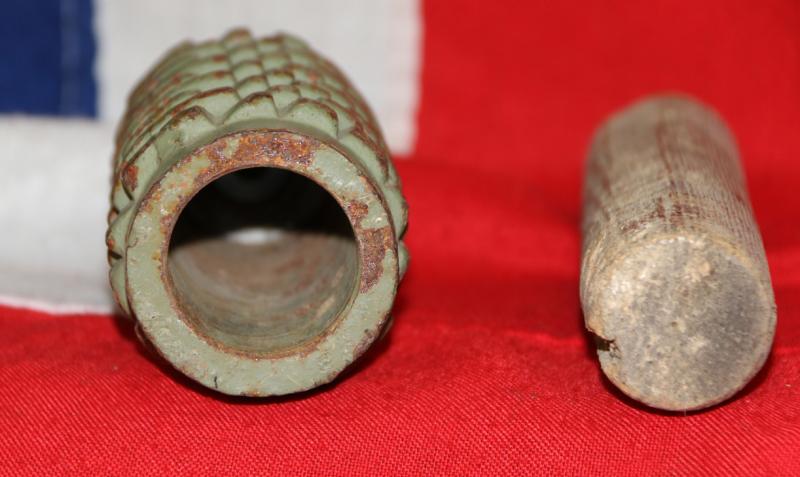

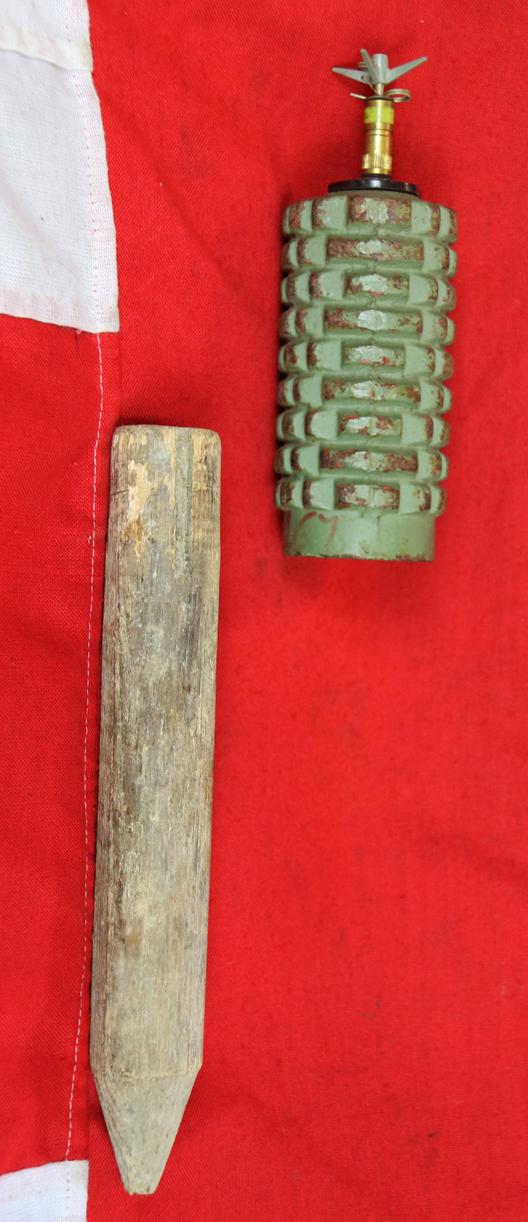

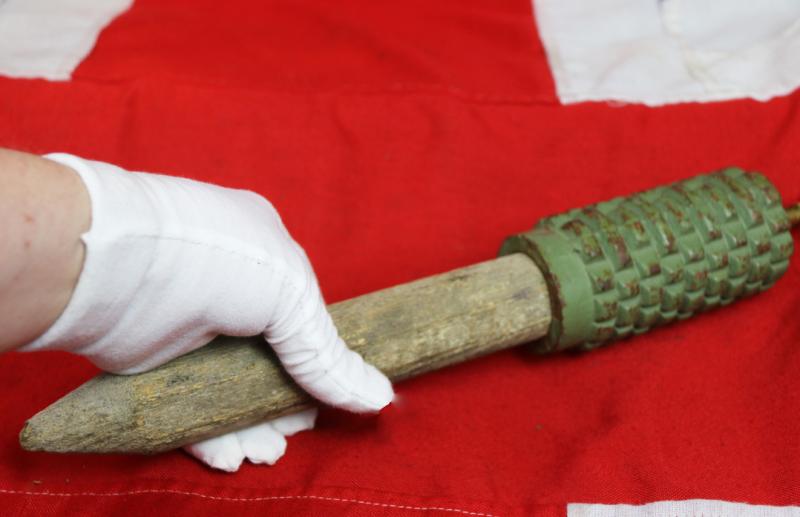

A tripwire activated, stake-mounted mine with a cylindrical cast-iron fragmentation sleeve. Usually attached to a wooden stake, but metal stakes are also used.
Commonly placed in dense vegetation with the top of the mine at a specific height above the ground.
Often uses the UPM-1 or UPM-2AS fuze.
Fragmentation: The cast-iron sleeve breaks into shrapnel upon detonation, creating a lethal area.
Former Yugoslavian issue.
The PMR-2A is a copy version of the German "Stockmine"

Plastic copies made for the training of troops today can cost up to $1,000 dollars each

Not available for export, UK mainland sale only.

Code: 25859
